Can I get a CX5 key copied at a hardware store?

No. CX5 is a restricted keyway — blanks are only available to authorized locksmiths, and proper authorization is required before any copy is made. That restriction is the whole point of the system.

What happens if I lose a CX5 key?

Because the keyway is restricted, unauthorized duplication is not a realistic risk. That said, rekeying the affected cylinders is still the recommended response to a lost key — it resets your key control record and rules out any chance of an authorized copy being out in the field.

Are CX5 systems worth the cost for a small business?

For any business managing employee access, tenant turnover, or sensitive areas, yes. The key control advantage alone — knowing exactly who can duplicate a key — reduces long-term risk and rekeying costs compared to standard keyways.

Commercial & Access Control Updated June 27, 2026

CX5 High-Security Keys: What You Need to Know

By Treco Locksmith & Security · rated 5★ across 205 Google reviews · serving Burlington & Hamilton

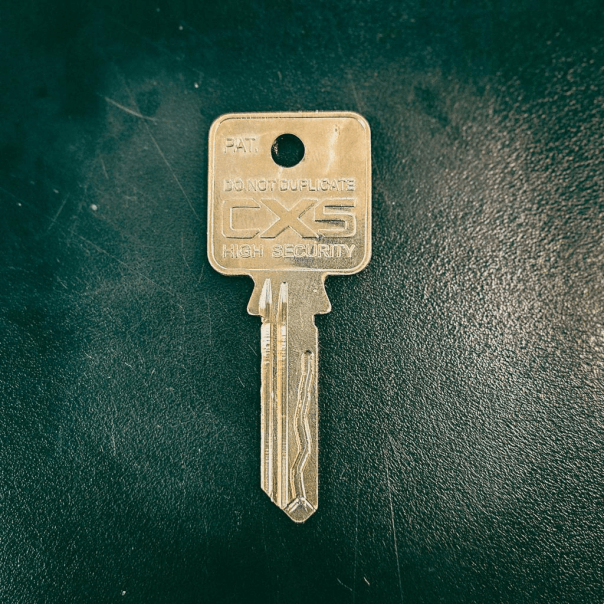

Not all keys are created equal. CX5 high-security keys use a restricted keyway system with dimple-style cuts and internal sidebar pins — engineering that makes them genuinely difficult to pick, bump, or duplicate without authorization. For commercial buildings, property managers, and multi-tenant facilities across Burlington, Hamilton, and Halton, they represent a meaningful step up from standard cylinders.

cx5 high security keys what you need to know

What Makes CX5 Keys Different

CX5 is a restricted keyway system most commonly associated with high-security cylinders from brands like Mul-T-Lock. Unlike standard edge-cut keys, CX5 keys feature:

Dimple-style cuts machined into the key face rather than along the edge
Side pins and internal sidebar that must align simultaneously with the main pin stack
Restricted keyway profiles — blanks are only available to credentialed, authorized locksmiths

The result is a cylinder that resists picking, bumping, and drilling while making unauthorized key duplication functionally impossible. Standard hardware stores cannot copy these keys.

Key Control: The Primary Commercial Advantage

For most commercial clients, the security benefit isn’t just pick resistance — it’s documented key control. Every CX5 copy requires authorization from the key holder of record. That means:

No employee can quietly duplicate a key before their last day
Tenant turnover doesn’t require a full rekey if departing tenants surrender keys
You maintain an audit trail of who holds which keys across your facility

This is why CX5 systems integrate naturally with master key systems — where department managers, building supervisors, and ownership all need different access levels managed from a single keyway. For a deeper look at how tiered access works in practice, see our guide to how master key systems work.

Where CX5 Systems Are Typically Installed

CX5 cylinders are common in applications where accountability matters:

Commercial office buildings with multiple tenants or departments
Apartment complexes and condo buildings managing resident turnover
Retail and hospitality with back-of-house access requirements
Industrial and warehouse facilities with restricted zones
High-value residential where the owner wants full key control

They’re particularly well-suited anywhere a commercial locksmith is already managing a broader security program — combining restricted keyways with access control or master keying delivers layered protection that standard hardware cannot match.

Common Service Scenarios

Lost or Unaccounted Keys

If a CX5 key cannot be confirmed surrendered, rekeying the affected cylinders is the standard response. Because the keyway is restricted, duplication risk is low — but rekeying resets the key control record cleanly.

Worn Keys and Cylinder Maintenance

Even high-security cylinders accumulate wear. Dimple-cut keys that have been in daily use for years can develop tolerance issues that make the lock feel stiff or inconsistent. Cleaning, lubrication, and — when necessary — cylinder replacement restore smooth operation without compromising the security tier.

Cylinder Damage

Forced entry attempts, vandalism, or water infiltration can compromise a cylinder’s internals without visibly breaking the lock face. A professional inspection determines whether the cylinder can be serviced or needs replacement.

Repair vs. Replacement

Service the cylinder if:

The issue is debris, lack of lubrication, or minor internal wear
The key is slightly worn but still cuts correctly

Replace the cylinder if:

Keys are lost and you cannot confirm they’ve been surrendered
The cylinder shows signs of forced entry or internal damage
You’re integrating the system into a new master key hierarchy

When to Consider Upgrading

CX5 is worth specifying when:

You manage multiple employees or tenants and need to track who holds keys
Your current keyway is available at hardware stores (standard keyways offer no duplication control)
You’ve had a security incident or a key has gone missing without explanation
You’re building or renovating and want to specify a long-term key control program from day one

If you’re in Burlington, Hamilton, Oakville, or anywhere in Halton Region, Treco Locksmith & Security is authorized to supply, cut, and install CX5 systems. With a 5.0-star rating across 205 Google reviews, our commercial clients trust us to manage restricted keyway programs with the documentation and precision they require.
